Because the screen of the badge is small, all the menu items are not visible at the same time. You can scroll to display more menu items at the same level, or you can select a menu item to view a nested set of items related to the upper-level menu choice.
Use the following buttons to navigate in the badge menus:
-
The Scroll Up button (the top button on the side of the B2000 badge and on the front of the B3000n/B3000 badge)
Press this button to scroll up through menu items.
Note: On the B3000n/B3000 badge, the Scroll Up and Scroll Down buttons depend on the screen orientation. -
The Scroll Down button (the bottom button on the side of the B2000 badge and on the front of the B3000n/B3000 badge)
Press this button to scroll down through menu items.
-
The Select button (the middle button on the side of the B2000 badge and on the front of the B3000n/B3000 badge)
Press this button to select a menu item. Depending on the selection you make, any of the following things can happen:
-
A lower-level set of menu items appears.
-
An action occurs (such as connecting to the vconfig utility).
-
A value is set (such as TRUE or FALSE).
-
-
The Call button (the big button on the front of the badge)
Press this button to navigate to an upper-level set of menu items. If you are already in the top-level set of menus, pressing the Call button does not navigate further.

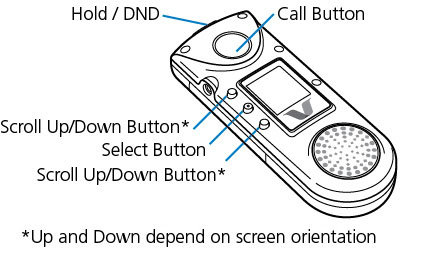

The following illustration shows the location of the buttons on the B3000n badge (B3000 buttons are in the same location):
