Vocera SIP Telephony Gateway Architecture

The Vocera SIP Telephony Gateway architecture explains how the VSTG is connected to Vocera mobile clients, and devices.

Vocera SIP Telephony Gateway is a SIP telephony gateway component within the Vocera Platform. It acts as a SIP gateway between the Voice Service and an IP PBX or a VoIP gateway.

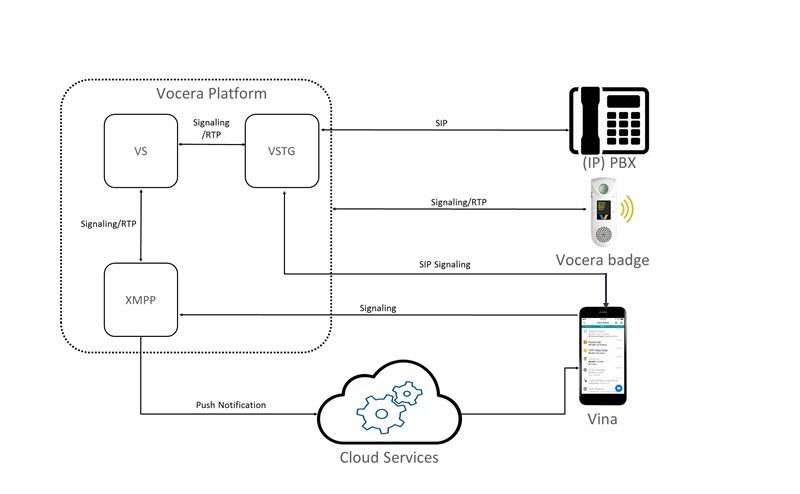

The following diagram illustrates the Vocera SIP Telephony Gateway architecture.

For more information on Vocera Platform, refer to the Vocera Platform Administration Guide.
