Web Sensing

If you are using labels without marks on the liner, the printer must be set to "web-sensing" before calibration.

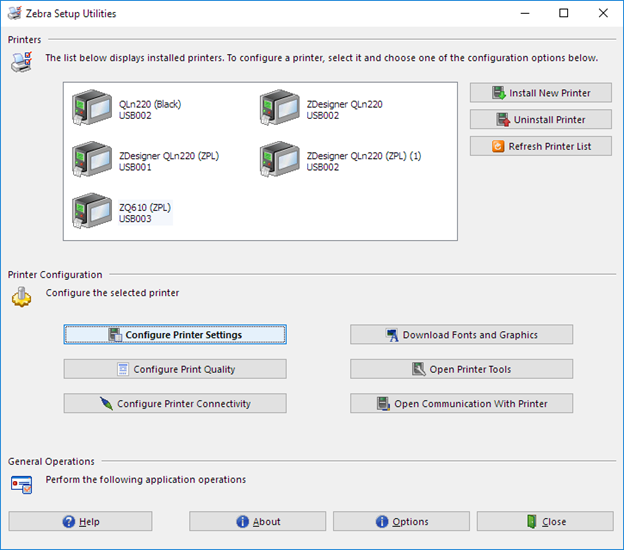

1. Click Configure Printer Settings.

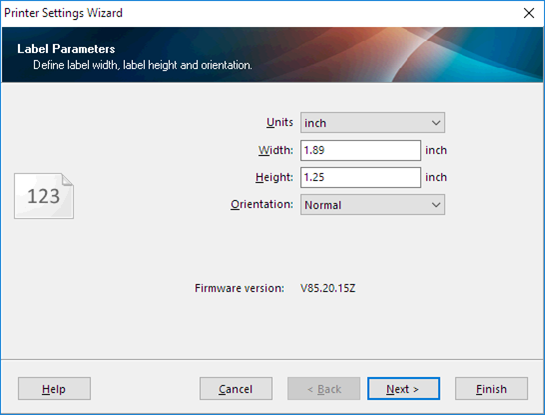

2. Set the label size (2” labels default to 1.89” printable width).

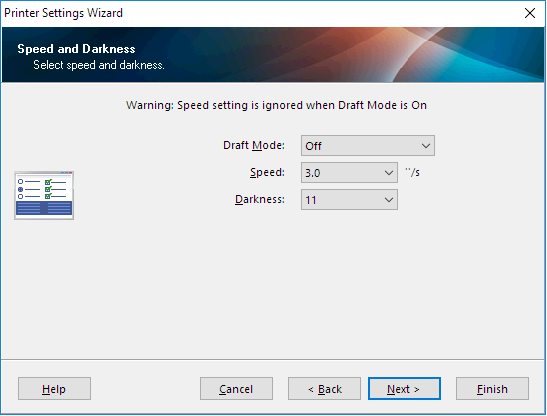

3. Most printers can use the default darkness and speed settings. This can be adjusted later as needed.

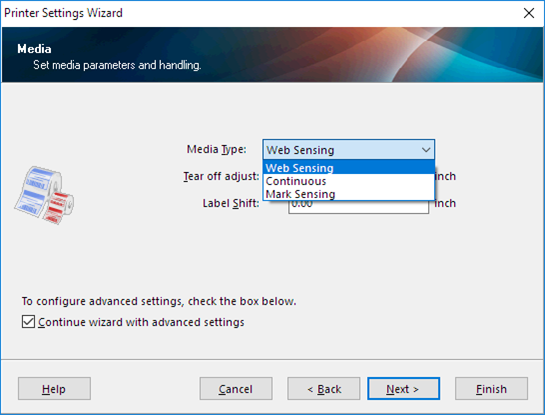

4. Select Web Sensing from the Media Type drop down list.
   Note:

   Web sensing is for labels without black markings on the liner.

5. Click Finish.
