The Badge Menus shows a series of menu screens that comprise the top level of the menu
system for B-series badges.
To use the B3000n badge menus, perform the following tasks:
- Press the Select button to display the menu.
- Use the Up or Down buttons to navigate
Note: The menu screens wrap in either direction if you keep pressing Up or

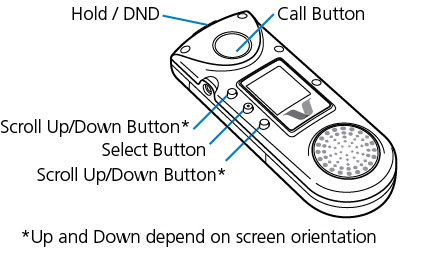

The Up, Select, and
Down buttons are on the front of the badge. Up and Down depend on
the orientation of the screen.
- Use the Select button to choose a displayed item.
- Press and hold the Select button until the badge beeps, to return
to the main screen at any time.
- Press the Select button from the main screen takes you to the
The top-level menu of are as follows:
