Configuring the Servers

When configuring the NetScaler load balancer, the first step is to configure the CWE servers that are to be used in your high-availability environment.

  1. Log into the NetScaler using your credentials.

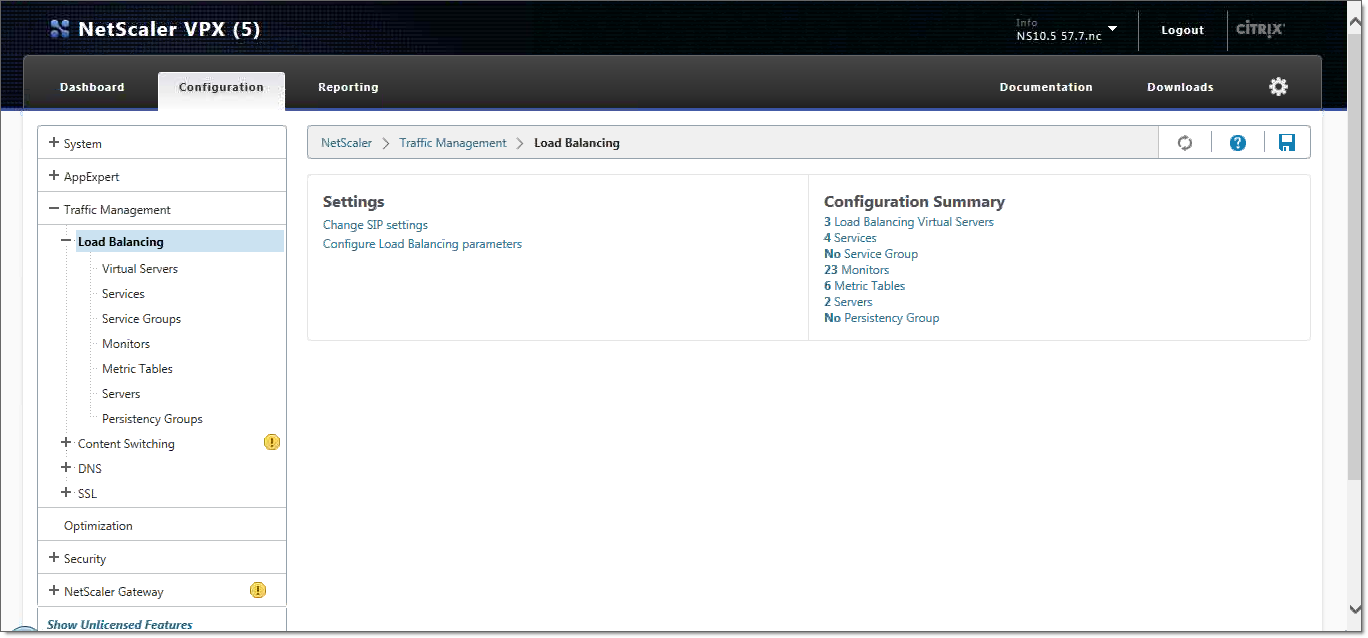

  2. Select Traffic Management and Load Balancing.

  3. Click Servers to specify the servers.

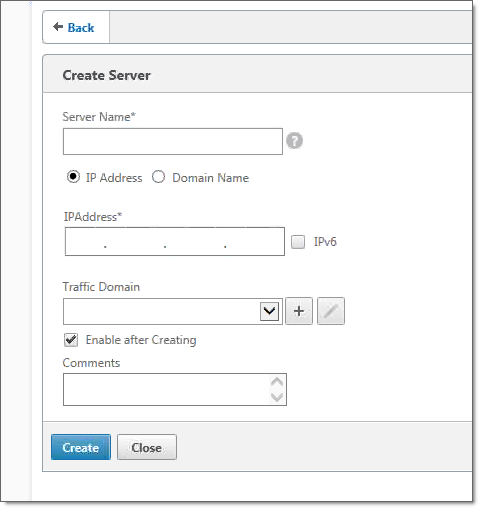

  4. In the Servers pane, click Add to display the Create Server pane.

  5. In the Server Name field, type the server name for this CWE instance.
  6. In the IPAddress field, specify the IP address for the instance.
  7. Leave all other fields unchanged.
  8. Click Create.
  9. Repeat these steps for all CWE instances.

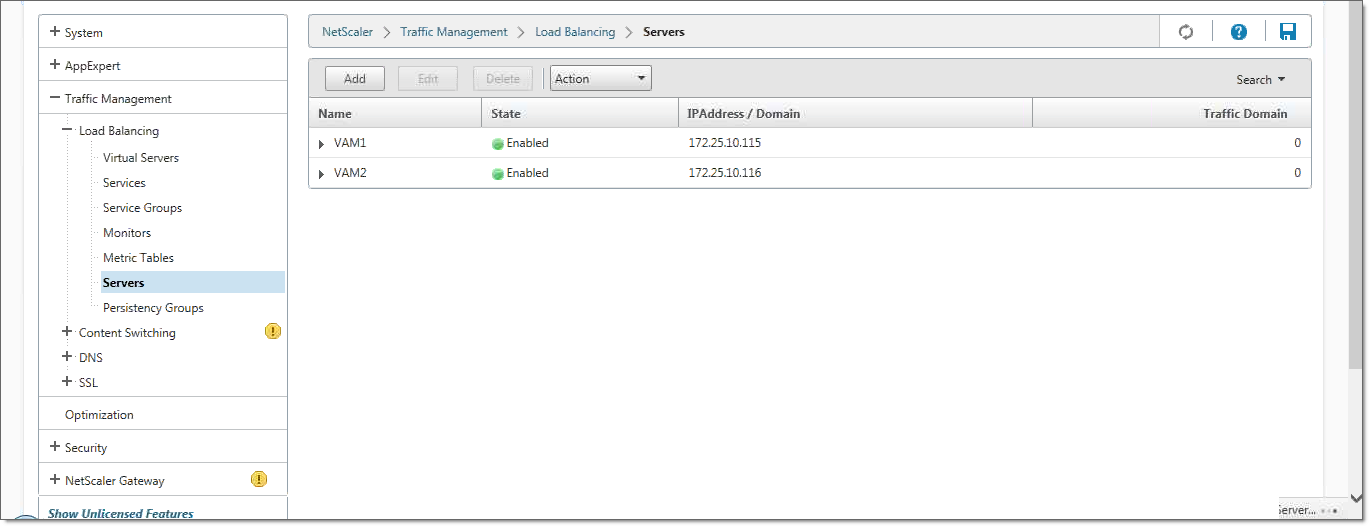

The Servers pane now displays the servers that you have configured.
