Specifying a Persistence Configuration

For a virtual server, you can specify a persistence configuration to maintain a connection to a specific CWE server.

  1. Highlight the virtual service that you want to edit.

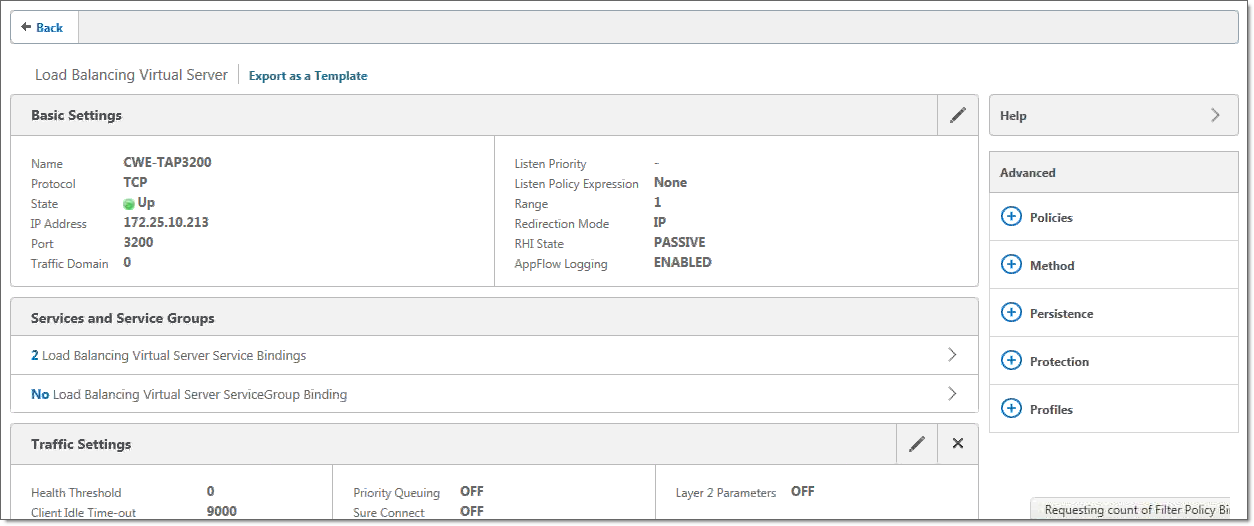

  2. Click Edit. The Load Balancing Virtual Server screen appears.

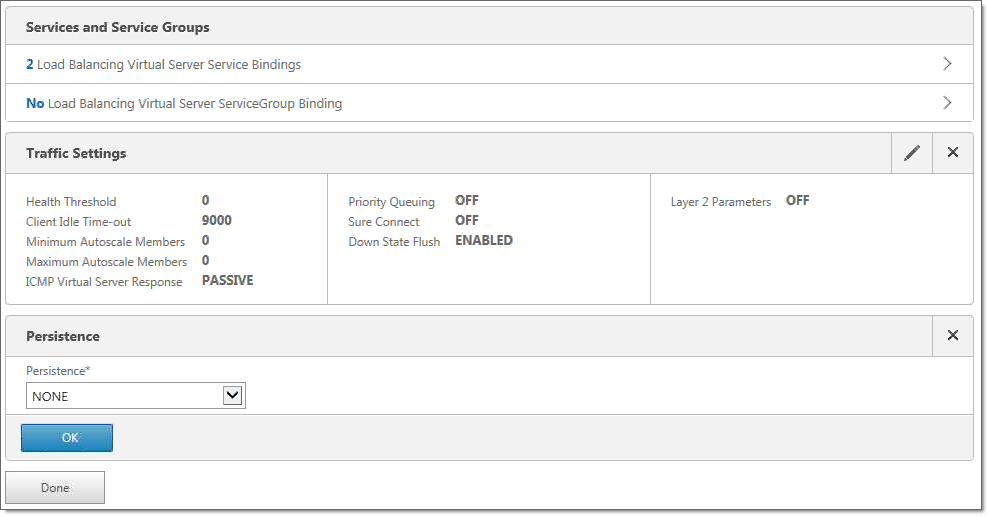

  3. In the Advanced pane at the right, click Persistence. The Persistence pane appears on the screen.

  4. From the Persistence dropdown list, select the persistence configuration option that you want to use. For example, select DESTIP to use the same destination IP address for a given connection.

    For information on a persistence configuration option, hover over the help icon next to the dropdown list to display an explanation of the option.

  5. Leave all other fields as their default values.
  6. Click OK.
  7. Click Done to return to the list of virtual servers.
Note: If you plan to specify a persistence configuration for your web service, Vocera recommends using the SOURCEIP setting. This ensures that a session coming from a particular web client will always end up on the same server.
