Configuring Active Directory

Configure the parameters of the Active Directory.

The following figure shows the configuration derails.

To configure Active Directory:

1.
2. Provide the required information as outlined in the following table.

   Field	Description	Action
   Domain *	Specifies the domain name of your organization.	Enter the domain name.
   Host *	Specifies the IP address of the host for the domain. By default the value displayed is 0.0.0.0	Provide the host IP address.
   Port *	Specifies the port number for the host IP address. By default the value displayed is 389.	Provide the port number of the host IP address.
   Base DN	Specifies the base DN for the active directory.	Enter the base DN for the active directory.
   Bootstrap User	Specifies the primary admin user for the Visualization server. This user would have access to User Management and Report Scheduling functionalities of the Visualization server.	Use update base DN and bootstrap link to update both Base DN and Bootstrap User.
   Update Base DN and Bootstrap User	Indicates to update the Base DN and the bootstrap username fields. This field is enabled after you have entered relevant values for Domain, Host, and Port fields.	Click the link to update base DN and bootstrap username details.

   Note: Fields marked with an asterisk (*) are mandatory.
3. Click Update Base DN and Bootstrap User—Opens the credentials dialog box to authenticate user access to active directory.

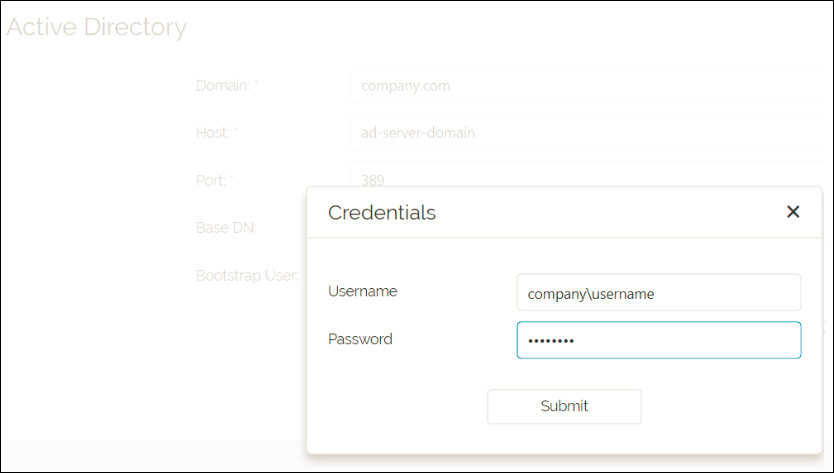

   The following figure displays the credentials of the bootstrap user.



   Field	Description	Action
   Username	Specifies the active directory username.	Provide your domain name followed by the username. For example, company\username.
   Password	Specifies a string of characters used for user authentication.	Provide the password configured for the user.

4. Click Submit—Authenticates the user against the active directory. On successful authentication, the Select Base DNs and User dialog box open.

   The following figure displays the Base DN and Bootstrap user.



   Field	Description	Action
   Base DNs	Lists the available base distinguished names (DN) that reside within the active directory host.	Select a base DN to populate the available users.
   Bootstrap User	Displays the users available within the base DN. Use the filters to search for different parameters.	Select a user from the table.

5. Click Update—Updates the Base DN and Bootstrap User fields.

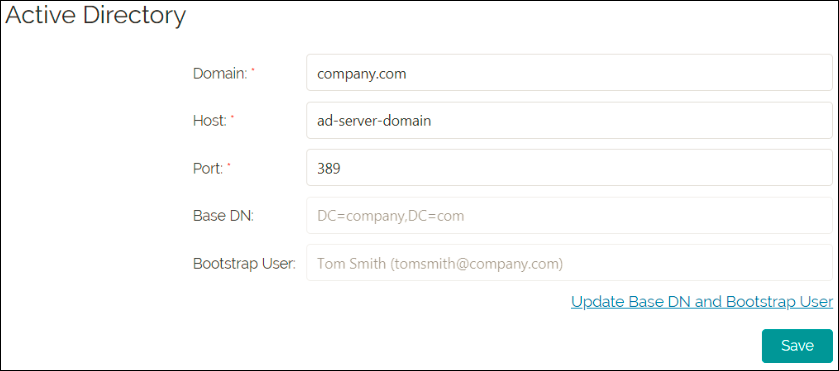

   The following figure displays the active directory values after the Base DN, and the bootstrap user is configured.


6. Click Save.

   Saves your entries.

7. Click Email.

   The Email configuration page appears.
