Understanding a Vocera XMPP Adapter Configuration |
The minimum Vocera XMPP Adapter requirements for a Vocera Platform installation are described here.
Cisco Unified Communications Manager (CUCM) version 9 or higher is optional, and not required for the Vocera XMPP Adapter to function. This CUCM version integrates the IM and Presence Services (formerly Cisco Unified Presence) in the server.
See the Vocera Platform IP Ports tables for additional port information.
The Vocera XMPP Adapter requires two open ports: TCP/5269 to communicate with a federated server, and TCP/5222 to communicate with a client.
XMPP traffic on the Internet and hospital networks between the Vocera appliance and devices over port 5222 is secured by TLS. Vocera Platform provides support for use of multiple proxy servers (one per data center) in the configuration options described below.
This adapter requires the port 443 for Vocera Platform to communicate with the Apple Push Notification Service (APNS).

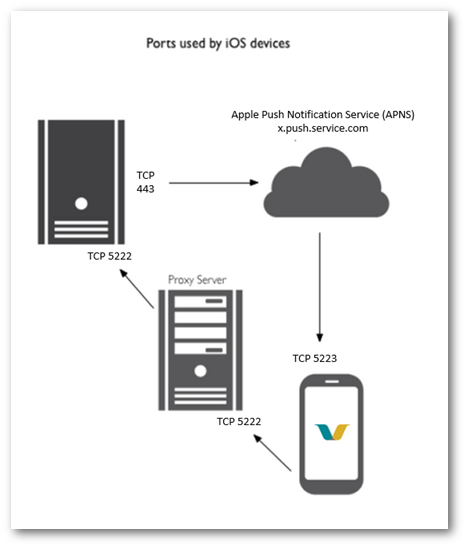

After this communication, the APNS uses the port 5223 to communicate with a mobile device. Per Apple, port 5223 must be open in both directions for a Wifi network; see iOS Troubleshooting Push Notifications. For APNS to work from within your network, inbound and outbound TCP traffic must be enabled for x.push.service.com on port 5223, specifically 17.0.0.0/8:5223 must be open in both directions.
Vocera Platform then requires mobile devices to use TCP port 5222 to communicate inbound first with a proxy server, then the Vocera Appliance. If a proxy is not used, the mobile device communicates directly with the Appliance through the same port, without going through a proxy server.
XMPP supports Google's Firebase Cloud Messaging (FCM) service which can send remote notifications to registered devices. In addition to identifying a physical device, a token can be registered for devices that can recieve remote notifications via this Android service.
This adapter requires the port 443 for Vocera Platform to communicate with Google's Firebase Cloud Messaging (FCM) service.
After this communication, FCM uses the ports 5228, 5229, 5230 to communicate with a mobile device. Per Google, ports 5228, 5229, and 5230 must be open in both directions for a Wifi network. For FCM to work from within your network, inbound and outbound TCP traffic must be enabled for fcm.googleapis.com.
Vocera Platform then requires mobile devices to use TCP port 5222 to communicate inbound first with a proxy server, then the Vocera Appliance. If a proxy is not used, the mobile device communicates directly with the Appliance through the same port, without going through a proxy server.
An adapter defines a default Dataset structure in order to function. Attributes are organized by Datasets and store the information required by the adapter. Adapters use this data during the process of receiving and sending messages.
Not all adapters require Datasets to function. When an adapter does require Datasets, the system will determine if they already exist. If they do not exist, the system will create the needed Datasets.
When creating or editing an adapter, use the following information to select the appropriate datasets in the Required Datasets section.
ACTORS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | uid | N/A | False | N/A | True | String | Attribute that stores the unchanging uid of the actor. |
Link | contact_details | actor | False | True | N/A | One-to-many | The ACTORS Dataset is linked to the CONTACT_DETAILS Dataset, and the link order is 1:n (one actor associated to many contact_details) |
Link | favorite_of | favorites | False | False | N/A | Many-to-many | The ACTORS Dataset is linked to the ACTORS Dataset, and the link order is m:n (many actors associated to many actors) |
Link | favorites | favorite_of | False | False | N/A | Many-to-many | The ACTORS Dataset is linked to the ACTORS Dataset, and the link order is m:n (many actors associated to many actors) |
ASSIGNMENTS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | assignment_id | N/A | True | N/A | N/A | String | Attribute that stores the unique identifier for the assignment. |
Attribute | interface_id | N/A | True | N/A | N/A | String | Attribute that stores the identifier for the interface owning this assignment. |
Attribute | level | N/A | True | N/A | N/A | String | Attribute that stores the level of the assignment. |
Attribute | state | N/A | False | N/A | False | String | Attribute that stores the state of the assignment. Possible values are active, next, expired, and deleted. |
Link | location | assignments | False | False | N/A | Many-to-one | The ASSIGNMENTS Dataset is linked to the LOCATIONS Dataset, and the link order is n:1 (many assignments associated to one location) |
Link | role | assignments | False | False | N/A | Many-to-one | The ASSIGNMENTS Dataset is linked to the FUNCTIONAL_ROLES Dataset, and the link order is n:1 (many assignments associated to one functional_role) |
Link | usr | assignments | False | False | N/A | Many-to-one | The ASSIGNMENTS Dataset is linked to the USERS Dataset, and the link order is n:1 (many assignments associated to one user) |
BEDS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | bed_number | N/A | True | N/A | N/A | String | Attribute that stores the number of the bed. |
Link | room | beds | True | False | N/A | Many-to-one | The BEDS Dataset is linked to the ROOMS Dataset, and the link order is n:1 (many beds associated to one room) |
Link | locs | places | False | False | N/A | Many-to-many | The BEDS Dataset is linked to the LOCATIONS Dataset, and the link order is m:n (many beds associated to many locations) |
CALL_LOG_HISTORY Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | call_log_type | N/A | False | N/A | False | String | Attribute that stores the type of the call log. Possible values are call, page, and voicemail. |
Attribute | call_type | N/A | False | N/A | False | String | Attribute that stores the type of the call. Possible values are Incoming, Outgoing, Broadcast, and PanicBroadcast. |
Attribute | called_group | N/A | False | N/A | False | String | Attribute that stores the uid of the called group. |
Attribute | callee | N/A | False | N/A | False | String | Attribute that stores the uid of the other party. |
Attribute | caller | N/A | False | N/A | False | String | Attribute that stores the uid of the calling party. |
Attribute | deleted | N/A | False | N/A | False | Boolean | Attribute that stores whether or not the voice mail has been deleted. |
Attribute | phone_number | N/A | False | N/A | False | String | Attribute that stores the phone number of the other party. |
Attribute | played | N/A | False | N/A | False | Boolean | Attribute that stores whether or not the voice mail has been played. |
Attribute | priority_type | N/A | False | N/A | False | String | Attribute that stores the priority for the call. Possible values include Normal, Important, Urgent, and Chat. |
Attribute | result | N/A | False | N/A | False | String | Attribute that stores the result of the call. |
Attribute | timestamp | N/A | False | N/A | False | Date/Time | Attribute that stores the timestamp of the call. |
CALL_LOG_RECEIPTS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | voicemail_deleted_at | N/A | False | N/A | False | Date/Time | Attribute that stores timestamp at time when the voicemail was deleted. |
Attribute | voicemail_played_at | N/A | False | N/A | False | Date/Time | Attribute that stores timestamp at time when the voicemail was played. |
Link | message | call_log_receipts | True | False | N/A | Many-to-one | The CALL_LOG_RECEIPTS Dataset is linked to the MESSAGES Dataset, and the link order is n:1 (many call_log_receipts associated to one message) |
Link | recipient | call_log_receipts | True | False | N/A | Many-to-one | The CALL_LOG_RECEIPTS Dataset is linked to the IDENTITIES Dataset, and the link order is n:1 (many call_log_receipts associated to one identity) |
CONTACT_DETAILS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | detail_type | N/A | True | N/A | N/A | String | Attribute that stores the type of the contact detail, such as phone or email. |
Attribute | value | N/A | False | N/A | False | String | Attribute that stores the value of the contact detail. |
Link | actor | contact_details | True | False | N/A | Many-to-one | The CONTACT_DETAILS Dataset is linked to the ACTORS Dataset, and the link order is n:1 (many contact_details associated to one actor) |
CONVERSATIONS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | jid1 | N/A | True | N/A | N/A | String | Attribute that stores for conversations between two users, it is the alphabetically first of the users' bare JIDs. For conference rooms, it is the conference room JID. |
Attribute | jid2 | N/A | True | N/A | N/A | String | Attribute that stores for conversations between two users, it is the alphabetically second of the users' bare JIDs. For conference rooms, it is the string 'ROOM'. |
Attribute | ttl | N/A | False | N/A | True | Integer | Attribute that stores the time-to-live (in minutes) for the conversation measured from the last message. |
Attribute | activity_state | N/A | False | N/A | False | String | Attribute that stores the activity state of the conversation. Possible values are active, expired, inactive, and closed. |
Attribute | topic | N/A | False | N/A | False | String | Attribute that stores the topic of the conversation. |
Link | bookmarked_users | bookmarks | False | False | N/A | Many-to-many | The CONVERSATIONS Dataset is linked to the USERS Dataset, and the link order is m:n (many conversations associated to many users) |
Link | history | conversation | False | False | N/A | One-to-many | The CONVERSATIONS Dataset is linked to the CONVERSATION_HISTORY Dataset, and the link order is 1:n (one conversation associated to many conversation_histories) |
Link | members | conversations | False | False | N/A | Many-to-many | The CONVERSATIONS Dataset is linked to the USERS Dataset, and the link order is m:n (many conversations associated to many users) |
Link | messages | conversation | False | False | N/A | One-to-many | The CONVERSATIONS Dataset is linked to the MESSAGES Dataset, and the link order is 1:n (one conversation associated to many messages) |
Link | patient | conversations | False | False | N/A | Many-to-one | The CONVERSATIONS Dataset is linked to the PATIENTS Dataset, and the link order is n:1 (many conversations associated to one patient) |
Link | team_members | team_conversations | False | False | N/A | Many-to-many | The CONVERSATIONS Dataset is linked to the USERS Dataset, and the link order is m:n (many conversations associated to many users) |
CONVERSATION_HISTORY Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | activity_state | N/A | False | N/A | False | String | Attribute that stores the activity state the conversation has been changed to. |
Link | conversation | history | False | False | N/A | Many-to-one | The CONVERSATION_HISTORY Dataset is linked to the CONVERSATIONS Dataset, and the link order is n:1 (many conversation_histories associated to one conversation) |
Link | member | history | False | False | N/A | Many-to-one | The CONVERSATION_HISTORY Dataset is linked to the IDENTITIES Dataset, and the link order is n:1 (many conversation_histories associated to one identity) |
DELIVERIES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | status | N/A | False | N/A | True | String | Attribute that stores the state of the delivered message. Possible values are Queued, Processing, Pending, Delivered, or Error. |
Attribute | triggered_at | N/A | False | N/A | True | Date/Time | Attribute that stores timestamp at which the original rule was triggered. |
Attribute | delivery_date | N/A | False | N/A | False | Date/Time | Attribute that stores the timestamp at which the message was delivered by the interface. |
Attribute | interface_name | N/A | False | N/A | False | String | Attribute that stores the reference name of the interface that delivered the message. |
Attribute | processing_time | N/A | False | N/A | False | Integer | Attribute that stores the duration in milliseconds from the time that the rule was triggered to when processing was completed. |
Attribute | status_text | N/A | False | N/A | False | String | Attribute that stores the reason for the current status, typically an error message. |
Link | history | delivery | False | False | N/A | One-to-many | The DELIVERIES Dataset is linked to the DELIVERY_HISTORY Dataset, and the link order is 1:n (one delivery associated to many delivery_histories) |
Link | message | deliveries | False | False | N/A | Many-to-one | The DELIVERIES Dataset is linked to the MESSAGES Dataset, and the link order is n:1 (many deliveries associated to one message) |
Link | usr | deliveries | False | False | N/A | Many-to-one | The DELIVERIES Dataset is linked to the USERS Dataset, and the link order is n:1 (many deliveries associated to one user) |
DELIVERY_HISTORY Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | status | N/A | False | N/A | True | String | Attribute that stores the state of the delivered message. Possible values are Queued, Processing, Pending, Delivered, or Error. |
Attribute | processing_time | N/A | False | N/A | False | Integer | Attribute that stores the duration in milliseconds from the time that the rule was triggered to when this state was set. |
Link | delivery | history | False | False | N/A | Many-to-one | The DELIVERY_HISTORY Dataset is linked to the DELIVERIES Dataset, and the link order is n:1 (many delivery_histories associated to one delivery) |
DEVICES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | name | N/A | True | N/A | N/A | String | Attribute that stores the name that identifies the device, often based upon the MAC address of the device. |
Attribute | status | N/A | False | N/A | True | String | Attribute that stores the current registration status of the device. Possible values are Registered, Disconnected, Virtual, or Unregistered. |
Attribute | vendor | N/A | False | N/A | True | String | Attribute that stores the vendor of the device. For example, Cisco or XMPP. |
Attribute | ip_address | N/A | False | N/A | False | String | Attribute that stores the current IP address of the device. In some cases Engage needs to keep track of the IP address of a device, such as with a Cisco phone. |
Attribute | priority | N/A | False | N/A | False | String | Attribute that stores the priority level of the most recent message sent to a device. Required by the device management library, but not set by the XMPP adapter. It is used as a filter to prevent less important messages from being sent to a user currently handling a critical issue. |
Attribute | token | N/A | False | N/A | False | String | Attribute that stores a special identifier needed by some devices, such as smart phones, in order to deliver a message. |
Link | history | device | False | False | N/A | One-to-many | The DEVICES Dataset is linked to the REGISTRATION_HISTORY Dataset, and the link order is 1:n (one device associated to many registration_histories) |
Link | lines | devices | False | False | N/A | One-to-many | The DEVICES Dataset is linked to the LINES Dataset, and the link order is 1:n (one device associated to many lines) |
Link | usr | devices | False | False | N/A | Many-to-one | The DEVICES Dataset is linked to the USERS Dataset, and the link order is n:1 (many devices associated to one user) |
FACILITIES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | name | N/A | True | N/A | N/A | String | Attribute that stores the unique name of the facility. |
Link | functional_roles | facility | False | True | N/A | One-to-many | The FACILITIES Dataset is linked to the FUNCTIONAL_ROLES Dataset, and the link order is 1:n (one facility associated to many functional_roles) |
Link | locations | facility | False | True | N/A | One-to-many | The FACILITIES Dataset is linked to the LOCATIONS Dataset, and the link order is 1:n (one facility associated to many locations) |
Link | presence_states | facility | False | True | N/A | One-to-many | The FACILITIES Dataset is linked to the PRESENCE_STATES Dataset, and the link order is 1:n (one facility associated to many presence_states) |
Link | rooms | facility | False | True | N/A | One-to-many | The FACILITIES Dataset is linked to the ROOMS Dataset, and the link order is 1:n (one facility associated to many rooms) |
Link | units | facility | False | True | N/A | One-to-many | The FACILITIES Dataset is linked to the UNITS Dataset, and the link order is 1:n (one facility associated to many units) |
FUNCTIONAL_ROLES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | name | N/A | True | N/A | N/A | String | Attribute that stores the name of the role. |
Attribute | location_type | N/A | False | N/A | False | String | Attribute that stores the type of location used on an assignment for which this functional role can be associated. Possible values are single-bed and multi-bed. |
Link | facility | functional_roles | True | False | N/A | Many-to-one | The FUNCTIONAL_ROLES Dataset is linked to the FACILITIES Dataset, and the link order is n:1 (many functional_roles associated to one facility) |
Link | assignments | role | False | False | N/A | One-to-many | The FUNCTIONAL_ROLES Dataset is linked to the ASSIGNMENTS Dataset, and the link order is 1:n (one functional_role associated to many assignments) |
GROUPS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | name | N/A | True | N/A | N/A | String | Attribute that stores the name of the group. |
Link | site | groups | True | False | N/A | Many-to-one | The GROUPS Dataset is linked to the SITES Dataset, and the link order is n:1 (many groups associated to one site) |
Link | units | groups | False | False | N/A | Many-to-many | The GROUPS Dataset is linked to the UNITS Dataset, and the link order is m:n (many groups associated to many units) |
IDENTITIES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | name | N/A | True | N/A | N/A | String | Attribute that stores the name of the user's identity. |
Link | call_log_receipts | recipient | False | True | N/A | One-to-many | The IDENTITIES Dataset is linked to the CALL_LOG_RECEIPTS Dataset, and the link order is 1:n (one identity associated to many call_log_receipts) |
Link | history | member | False | False | N/A | One-to-many | The IDENTITIES Dataset is linked to the CONVERSATION_HISTORY Dataset, and the link order is 1:n (one identity associated to many conversation_histories) |
Link | message_deliveries | recipient | False | True | N/A | One-to-many | The IDENTITIES Dataset is linked to the MESSAGE_DELIVERIES Dataset, and the link order is 1:n (one identity associated to many message_deliveries) |
Link | messages_for | recipients | False | False | N/A | Many-to-many | The IDENTITIES Dataset is linked to the MESSAGES Dataset, and the link order is m:n (many identities associated to many messages) |
Link | messages_sent | from | False | False | N/A | One-to-many | The IDENTITIES Dataset is linked to the MESSAGES Dataset, and the link order is 1:n (one identity associated to many messages) |
Link | usr | identities | False | False | N/A | Many-to-one | The IDENTITIES Dataset is linked to the USERS Dataset, and the link order is n:1 (many identities associated to one user) |
LINES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | number | N/A | True | N/A | N/A | String | Attribute that stores number |
Link | device_history | line | False | False | N/A | One-to-many | The LINES Dataset is linked to the REGISTRATION_HISTORY Dataset, and the link order is 1:n (one line associated to many registration_histories) |
Link | devices | lines | False | False | N/A | Many-to-one | The LINES Dataset is linked to the DEVICES Dataset, and the link order is n:1 (many lines associated to one device) |
LOCATIONS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | location_id | N/A | True | N/A | N/A | String | Attribute that stores the unique identifier for the location. |
Link | facility | locations | True | False | N/A | Many-to-one | The LOCATIONS Dataset is linked to the FACILITIES Dataset, and the link order is n:1 (many locations associated to one facility) |
Link | assignments | location | False | False | N/A | One-to-many | The LOCATIONS Dataset is linked to the ASSIGNMENTS Dataset, and the link order is 1:n (one location associated to many assignments) |
Link | places | locs | False | False | N/A | Many-to-many | The LOCATIONS Dataset is linked to the BEDS Dataset, and the link order is m:n (many locations associated to many beds) |
Link | units | locations | False | False | N/A | Many-to-many | The LOCATIONS Dataset is linked to the UNITS Dataset, and the link order is m:n (many locations associated to many units) |
MESSAGES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | uuid | N/A | True | N/A | N/A | String | Attribute that stores the universally unique identifier of the message. |
Attribute | received_at | N/A | False | N/A | True | Date/Time | Attribute that stores the time at which the server received the message from the sending client. |
Attribute | sent_at | N/A | False | N/A | True | Date/Time | Attribute that stores the timestamp at which the message was sent by the client. |
Attribute | acknowledgeable | N/A | False | N/A | False | String | Attribute that stores whether or not this message can be acknowledged by another message. Boolean values are 't' or 'f'. |
Attribute | elements | N/A | False | N/A | False | String | Attribute that stores the raw XML of elements other than the body in the message sent. |
Attribute | message | N/A | False | N/A | False | String | Attribute that stores the raw body content of the message. |
Attribute | nick | N/A | False | N/A | False | String | Attribute that stores the nickname of the user that sent the message. |
Attribute | state | N/A | False | N/A | False | String | Attribute that stores the state of the message. Possible values are expired, unknown, and valid. |
Link | acknowledged_by | acknowledges | False | False | N/A | One-to-many | The MESSAGES Dataset is linked to the MESSAGES Dataset, and the link order is 1:n (one message associated to many messages) |
Link | acknowledges | acknowledged_by | False | False | N/A | Many-to-one | The MESSAGES Dataset is linked to the MESSAGES Dataset, and the link order is n:1 (many messages associated to one message) |
Link | call_log_receipts | message | False | True | N/A | One-to-many | The MESSAGES Dataset is linked to the CALL_LOG_RECEIPTS Dataset, and the link order is 1:n (one message associated to many call_log_receipts) |
Link | conversation | messages | False | False | N/A | Many-to-one | The MESSAGES Dataset is linked to the CONVERSATIONS Dataset, and the link order is n:1 (many messages associated to one conversation) |
Link | deliveries | message | False | False | N/A | One-to-many | The MESSAGES Dataset is linked to the DELIVERIES Dataset, and the link order is 1:n (one message associated to many deliveries) |
Link | from | messages_sent | False | False | N/A | Many-to-one | The MESSAGES Dataset is linked to the IDENTITIES Dataset, and the link order is n:1 (many messages associated to one identity) |
Link | message_deliveries | message | False | True | N/A | One-to-many | The MESSAGES Dataset is linked to the MESSAGE_DELIVERIES Dataset, and the link order is 1:n (one message associated to many message_deliveries) |
Link | recipients | messages_for | False | False | N/A | Many-to-many | The MESSAGES Dataset is linked to the IDENTITIES Dataset, and the link order is m:n (many messages associated to many identities) |
MESSAGE_DELIVERIES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | sent_at | N/A | False | N/A | True | Date/Time | Attribute that stores the time the server sent the message to the recipient. |
Attribute | acknowledged_at | N/A | False | N/A | False | Date/Time | Attribute that stores the time the recipient has manually acknowledged the message. |
Attribute | displayed_at | N/A | False | N/A | False | Date/Time | Attribute that stores the time the message was displayed on the recipient's device. |
Attribute | received_at | N/A | False | N/A | False | Date/Time | Attribute that stores the time the recipient received the message. |
Link | message | message_deliveries | True | False | N/A | Many-to-one | The MESSAGE_DELIVERIES Dataset is linked to the MESSAGES Dataset, and the link order is n:1 (many message_deliveries associated to one message) |
Link | recipient | message_deliveries | True | False | N/A | Many-to-one | The MESSAGE_DELIVERIES Dataset is linked to the IDENTITIES Dataset, and the link order is n:1 (many message_deliveries associated to one identity) |
PATIENTS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | mrn | N/A | True | N/A | N/A | String | Attribute that stores the Medical Record Number of the patient. |
Attribute | admit_date | N/A | False | N/A | False | Date/Time | Attribute that stores the admission date of the patient. |
Attribute | dob | N/A | False | N/A | False | Date | Attribute that stores the date of birth of the patient. |
Attribute | first_name | N/A | False | N/A | False | String | Attribute that stores the first name of the patient. |
Attribute | last_name | N/A | False | N/A | False | String | Attribute that stores the last name of the patient. |
Attribute | sex | N/A | False | N/A | False | String | Attribute that stores the gender of the patient. |
Attribute | status | N/A | False | N/A | False | String | Attribute that stores the admission status of the patient. |
Link | conversations | patient | False | False | N/A | One-to-many | The PATIENTS Dataset is linked to the CONVERSATIONS Dataset, and the link order is 1:n (one patient associated to many conversations) |
Link | current_place | patient | False | False | N/A | One-to-one | The PATIENTS Dataset is linked to the PLACES Dataset, and the link order is 1:1 (one patient associated to one place) |
PLACES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Link | patient | current_place | False | False | N/A | One-to-one | The PLACES Dataset is linked to the PATIENTS Dataset, and the link order is 1:1 (one place associated to one patient) |
PRESENCE_HISTORY Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | changed_by | N/A | False | N/A | True | String | Attribute that stores indicates how the presence was changed. Possible values are user and system. |
Attribute | resource | N/A | False | N/A | True | String | Attribute that stores the resource portion of the JID to which the presence history applies. |
Attribute | sent_at | N/A | False | N/A | True | Date/Time | Attribute that stores the timestamp on the client device at which the message was generated. |
Attribute | show | N/A | False | N/A | True | String | Attribute that stores the current presence show value for the user. |
Attribute | status | N/A | False | N/A | False | String | Attribute that stores the current presence status text for the user. |
Link | usr | presence_history | False | False | N/A | Many-to-one | The PRESENCE_HISTORY Dataset is linked to the USERS Dataset, and the link order is n:1 (many presence_histories associated to one user) |
PRESENCE_STATES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | show | N/A | True | N/A | N/A | String | Attribute that stores the presence show value to be associated with the status message. Possible values are away, chat, dnd, and xa. |
Attribute | status | N/A | True | N/A | N/A | String | Attribute that stores the custom presence status message. |
Attribute | duration | N/A | False | N/A | False | Integer | Attribute that stores the time (in minutes) to keep the user in the presence state. |
Link | facility | presence_states | True | False | N/A | Many-to-one | The PRESENCE_STATES Dataset is linked to the FACILITIES Dataset, and the link order is n:1 (many presence_states associated to one facility) |
REGISTRATION_HISTORY Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | access_point | N/A | False | N/A | False | String | Attribute that stores the access point that the device is currently connected to. |
Attribute | application_version | N/A | False | N/A | False | String | Attribute that stores the device's version of Engage. |
Attribute | device_status | N/A | False | N/A | False | String | Attribute that stores the current registration status of the device. |
Attribute | hardware_version | N/A | False | N/A | False | String | Attribute that stores the device's hardware version. |
Attribute | ip_address | N/A | False | N/A | False | String | Attribute that stores the device's current IP address. |
Attribute | os_version | N/A | False | N/A | False | String | Attribute that stores the device's OS version. |
Attribute | previous_access_point | N/A | False | N/A | False | String | Attribute that stores the access point that the device was previously connected to. |
Attribute | previous_ip_address | N/A | False | N/A | False | String | Attribute that stores the device's previous IP address. |
Attribute | previous_wireless_strength | N/A | False | N/A | False | Integer | Attribute that stores the device's previous wireless signal strength in dBm. |
Attribute | token | N/A | False | N/A | False | String | Attribute that stores some devices, such as smartphones, require a special identifier in order to receive a message. The token is used to store that special identifier. |
Attribute | uuid | N/A | False | N/A | False | String | Attribute that stores the device's universally unique identifier. |
Attribute | wireless_strength | N/A | False | N/A | False | Integer | Attribute that stores the device's current wireless signal strength in dBm. |
Link | device | history | False | False | N/A | Many-to-one | The REGISTRATION_HISTORY Dataset is linked to the DEVICES Dataset, and the link order is n:1 (many registration_histories associated to one device) |
Link | line | device_history | False | False | N/A | Many-to-one | The REGISTRATION_HISTORY Dataset is linked to the LINES Dataset, and the link order is n:1 (many registration_histories associated to one line) |
Link | usr | device_history | False | False | N/A | Many-to-one | The REGISTRATION_HISTORY Dataset is linked to the USERS Dataset, and the link order is n:1 (many registration_histories associated to one user) |
ROOMS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | room_number | N/A | True | N/A | N/A | String | Attribute that stores the room number. |
Link | facility | rooms | True | False | N/A | Many-to-one | The ROOMS Dataset is linked to the FACILITIES Dataset, and the link order is n:1 (many rooms associated to one facility) |
Link | beds | room | False | True | N/A | One-to-many | The ROOMS Dataset is linked to the BEDS Dataset, and the link order is 1:n (one room associated to many beds) |
Link | unit | rooms | False | False | N/A | Many-to-one | The ROOMS Dataset is linked to the UNITS Dataset, and the link order is n:1 (many rooms associated to one unit) |
SITES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | name | N/A | True | N/A | N/A | String | Attribute that stores the unique name for the site. |
Link | groups | site | False | True | N/A | One-to-many | The SITES Dataset is linked to the GROUPS Dataset, and the link order is 1:n (one site associated to many groups) |
TEMPLATES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | name | N/A | True | N/A | N/A | String | Attribute that stores the short name identifying the template message. |
Attribute | text | N/A | False | N/A | False | String | Attribute that stores the full text of the template. |
Link | template_categories | templates | False | False | N/A | Many-to-many | The TEMPLATES Dataset is linked to the TEMPLATE_CATEGORIES Dataset, and the link order is m:n (many templates associated to many template_categories) |
Link | users | templates | False | False | N/A | Many-to-many | The TEMPLATES Dataset is linked to the USERS Dataset, and the link order is m:n (many templates associated to many users) |
TEMPLATE_CATEGORIES Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | name | N/A | True | N/A | N/A | String | Attribute that stores the unique name of the template category. |
Link | templates | template_categories | False | False | N/A | Many-to-many | The TEMPLATE_CATEGORIES Dataset is linked to the TEMPLATES Dataset, and the link order is m:n (many template_categories associated to many templates) |
Link | units | template_categories | False | False | N/A | Many-to-many | The TEMPLATE_CATEGORIES Dataset is linked to the UNITS Dataset, and the link order is m:n (many template_categories associated to many units) |
UNITS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | name | N/A | True | N/A | N/A | String | Attribute that stores the unique name for a unit in a facility. |
Link | facility | units | True | False | N/A | Many-to-one | The UNITS Dataset is linked to the FACILITIES Dataset, and the link order is n:1 (many units associated to one facility) |
Link | groups | units | False | False | N/A | Many-to-many | The UNITS Dataset is linked to the GROUPS Dataset, and the link order is m:n (many units associated to many groups) |
Link | locations | units | False | False | N/A | Many-to-many | The UNITS Dataset is linked to the LOCATIONS Dataset, and the link order is m:n (many units associated to many locations) |
Link | rooms | unit | False | False | N/A | One-to-many | The UNITS Dataset is linked to the ROOMS Dataset, and the link order is 1:n (one unit associated to many rooms) |
Link | template_categories | units | False | False | N/A | Many-to-many | The UNITS Dataset is linked to the TEMPLATE_CATEGORIES Dataset, and the link order is m:n (many units associated to many template_categories) |
Link | users | unit | False | False | N/A | One-to-many | The UNITS Dataset is linked to the USERS Dataset, and the link order is 1:n (one unit associated to many users) |
USERS Dataset
Element | Name | Reverse Name | Key | Reverse Key | Required | Type | Description |
---|---|---|---|---|---|---|---|
Attribute | login | N/A | True | N/A | N/A | String | Attribute that stores the login name of the user. |
Attribute | N/A | False | N/A | False | String | Attribute that stores the email address of the user. | |
Attribute | first_name | N/A | False | N/A | False | String | Attribute that stores the first name of the user. |
Attribute | last_name | N/A | False | N/A | False | String | Attribute that stores the last name of the user. |
Attribute | middle_initials | N/A | False | N/A | False | String | Attribute that stores the initials of any middle names of the user. |
Attribute | photo | N/A | False | N/A | False | String | Attribute that stores the Base-64 encoded photo of the user. |
Attribute | photo_type | N/A | False | N/A | False | String | Attribute that stores the content type of the photo. |
Attribute | preferred_font_size | N/A | False | N/A | False | String | Attribute that stores the user's preferred font size. Possible values are medium or large. |
Attribute | presence_show | N/A | False | N/A | False | String | Attribute that stores the current presence show value for the user. |
Attribute | presence_status | N/A | False | N/A | False | String | Attribute that stores the current presence status message for the user. |
Attribute | reference_name | N/A | False | N/A | False | String | Attribute that stores full name of user |
Attribute | title | N/A | False | N/A | False | String | Attribute that stores the title of the user. |
Link | assignments | usr | False | False | N/A | One-to-many | The USERS Dataset is linked to the ASSIGNMENTS Dataset, and the link order is 1:n (one user associated to many assignments) |
Link | bookmarks | bookmarked_users | False | False | N/A | Many-to-many | The USERS Dataset is linked to the CONVERSATIONS Dataset, and the link order is m:n (many users associated to many conversations) |
Link | conversations | members | False | False | N/A | Many-to-many | The USERS Dataset is linked to the CONVERSATIONS Dataset, and the link order is m:n (many users associated to many conversations) |
Link | deliveries | usr | False | False | N/A | One-to-many | The USERS Dataset is linked to the DELIVERIES Dataset, and the link order is 1:n (one user associated to many deliveries) |
Link | device_history | usr | False | False | N/A | One-to-many | The USERS Dataset is linked to the REGISTRATION_HISTORY Dataset, and the link order is 1:n (one user associated to many registration_histories) |
Link | devices | usr | False | False | N/A | One-to-many | The USERS Dataset is linked to the DEVICES Dataset, and the link order is 1:n (one user associated to many devices) |
Link | identities | usr | False | False | N/A | One-to-many | The USERS Dataset is linked to the IDENTITIES Dataset, and the link order is 1:n (one user associated to many identities) |
Link | presence_history | usr | False | False | N/A | One-to-many | The USERS Dataset is linked to the PRESENCE_HISTORY Dataset, and the link order is 1:n (one user associated to many presence_histories) |
Link | team_conversations | team_members | False | False | N/A | Many-to-many | The USERS Dataset is linked to the CONVERSATIONS Dataset, and the link order is m:n (many users associated to many conversations) |
Link | templates | users | False | False | N/A | Many-to-many | The USERS Dataset is linked to the TEMPLATES Dataset, and the link order is m:n (many users associated to many templates) |
Link | unit | users | False | False | N/A | Many-to-one | The USERS Dataset is linked to the UNITS Dataset, and the link order is n:1 (many users associated to one unit) |
