The Brekeke SIP server configuration should be the hospital's responsibility. The information on this page is provided for reference.
Contact the hospital's System Administrator for access and login information if needed.
Refer to Brekeke SIP Server documentation (http://www.brekeke.com/sip/) for additional administration information.
Viewing the Brekeke SIP Server Configuration Fields
Once logged into the Brekeke SIP server, locate these settings in the left navigation in the user interface.
- Active Sessions: Displays any calls that are actively being processed.
- Status: Allows you to start / stop the SIP server.
- Dial Plan: Allows the configuration of rules for one or more SIP source / destination combinations.
- Configuration: Allows the configuration of the Local Port (see the SIP Exchanger tab below.) In this example, Local Port is set to 5060.
Viewing Dial Plan Configuration Fields

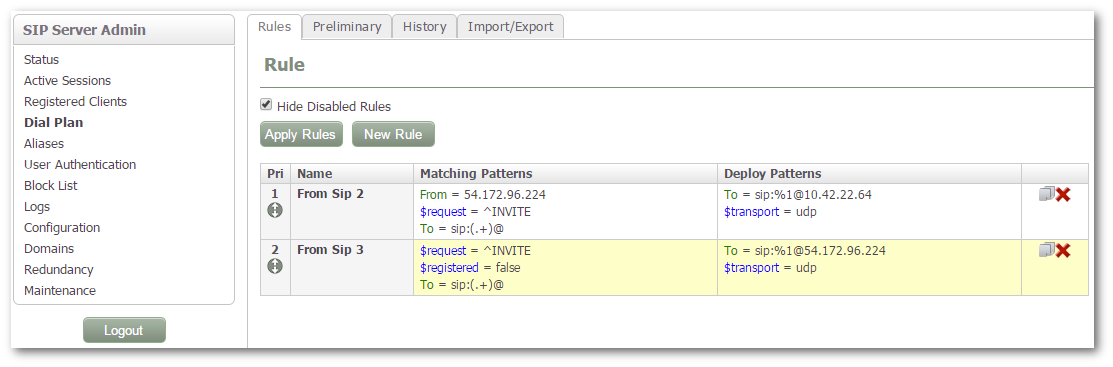

Select Dial Plan in the navigation tree, and view the Rule tab as shown below.
The following table specifies the configuration details shown in the Rule tab. Note that 'To = sip:(.+)@' can be configured to match the dial pattern on the phone to send to different Vocera SIP Adapter. In addition, Rule 2 can be modified to add a 'From' field with the IP address of the phone, in order to allow multiple phones to connect to different Vocera SIP Adapter.
| Priority | Rule Name | Matching Patterns | Deploy Patterns |
|---|---|---|---|
| 1 | ADP to Brekeke | From = <Appliance IP address> $request = ^INVITETo = sip:(.+)@ | To = sip:%1@<Brekeke IP address> $transport = udp |
| 2 | Any to ADP | $request = ^INVITE$registered = falseTo = sip:(.+)@ | To = sip:%1@<Appliance IP address> $transport = udp |
