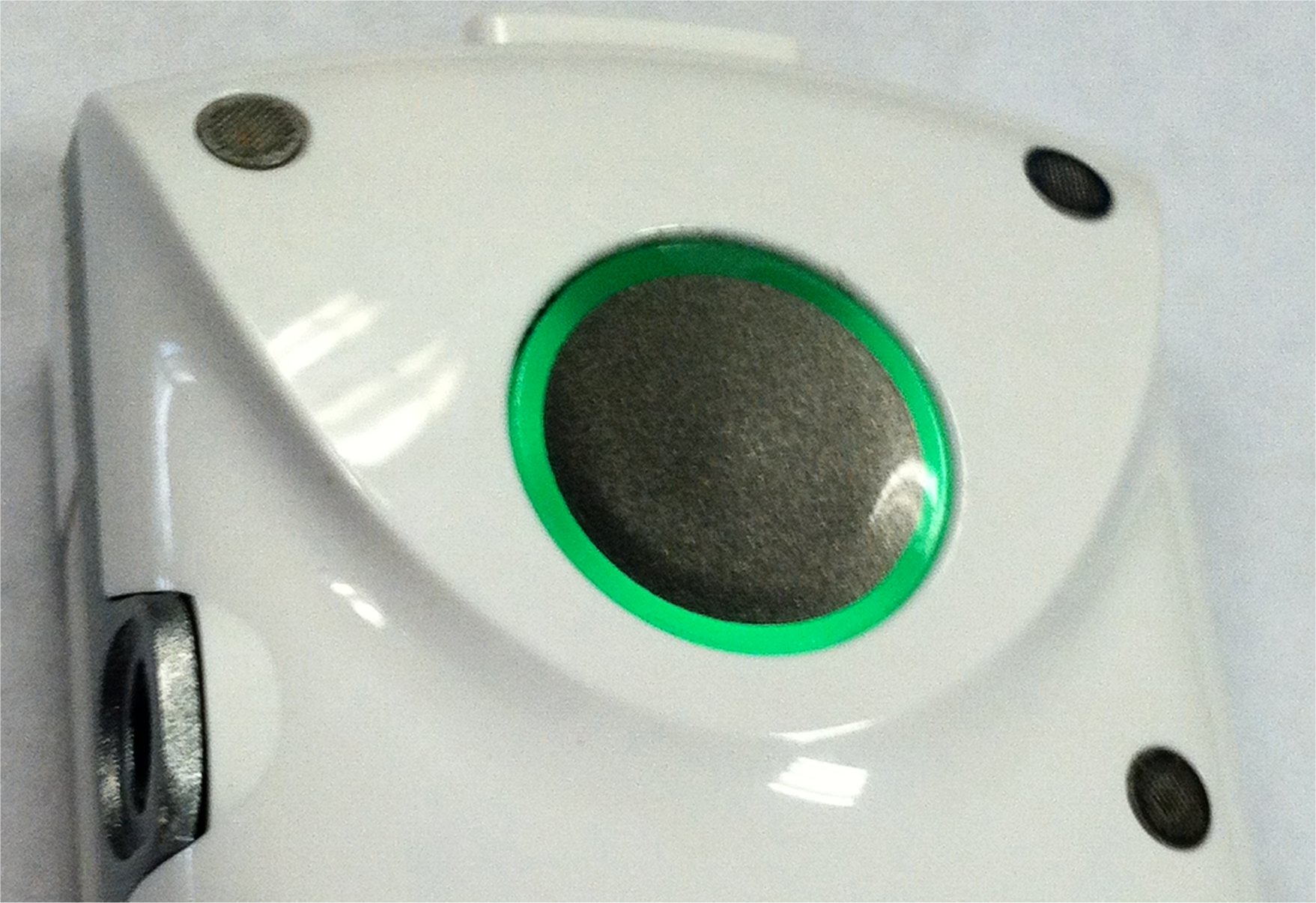

The B3000n provides a LED-lighted halo around the Call button to indicate the status of the badge, allowing other people to see if you are in a call.
The LED halo around the Call button uses the following colors:
|
Color |
Meaning |
|---|---|
|
Green |
On an active call |
|
Amber |
In DND mode or on hold |
|
Cycle through colors |
Off-network (unable to connect to access points) |
|
Pink |
The user is not logged into Vocera |
The halo light around the Call button appears on the front of the badge and you may need to tilt the badge up to see your halo light. Other people should be able to see your halo light easily and notice whether you are currently on an active call.
