Joining a Database Cluster
After you add a node to the cluster, you must ensure that it joins the
To join a node to the cluster:
Open a new browser and log in to the Web Console for your slave node.
Navigate to the Settings section in the navigation bar
and click High Availability.

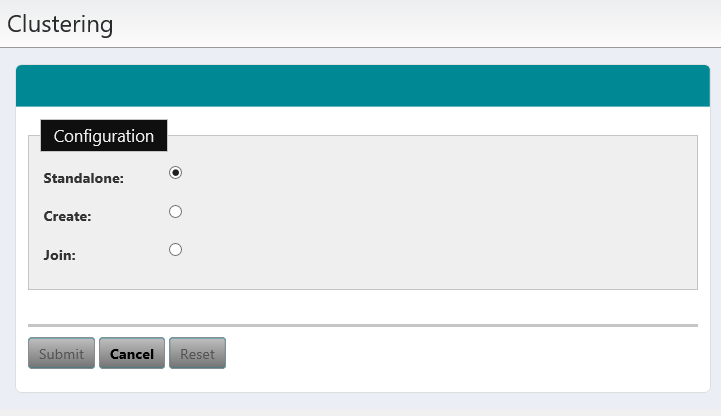

You will notice that the clustering configuration is set to
Click the Join radio button in the Configuration
Enter or paste the authentication token in the token field. For more
information on authentication code, see Enabling Clustering on a Standalone Server.

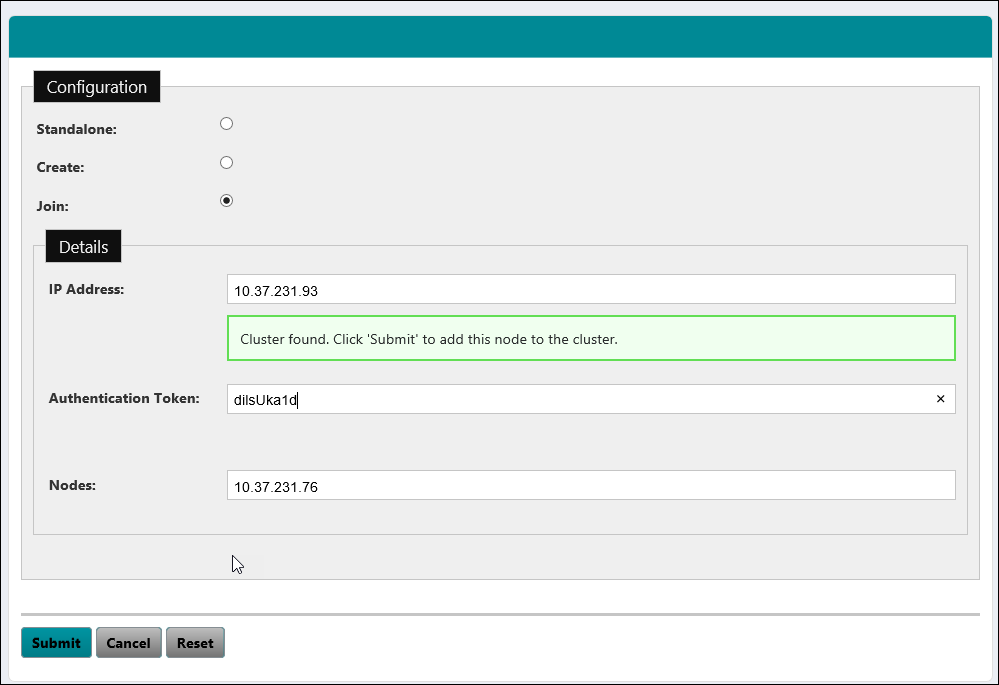

In the Details section, enter the following
- Enter the VIP or the Active (Master) node's PIP into the IP
Note: The Slave nodes associated with the
Master automatically populate in the Nodes
field when the VIP or the PIP of the Master node is entered in the
IP Address field.
- Enter the Master node's Authentication Token for
the VIP or PIP.
Click Submit to save your changes to the system.
Launch the master node's Web Console on a separate browser.
Navigate to Database Cluster in
Status section of the navigation bar.
Select the slave node and click
