Device Version Usage

[Data Source: Voice Server, VCS] Displays the total number of calls made using Vocera devices including call percentage. Results are generated based on the date range specified.

The information displayed on the screen is determined based on the filters that you apply. The available filters are:

Table 1. Filters
Filter Name Filter Description
Date Range The date range to include in the results. By default, the value is the current date; however, you can select from a list of options. For example, you can select the option "Last 7 days" or "Last 30 days."

The Device Version Usage report provides two types of information such as the overall device version usage and the usage trend for each device. Data includes number of calls including its percentage and total calls and percentage for the different types of devices used within the selected time frame.

Device version usage results are grouped by devices. For each device, two different reports are provided:

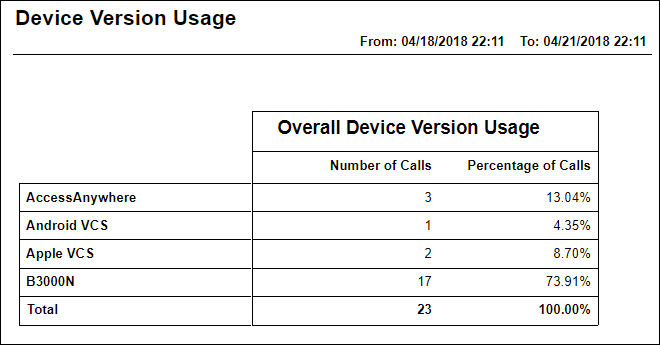

Following is the first page of a sample report that shows the overall device version usage.

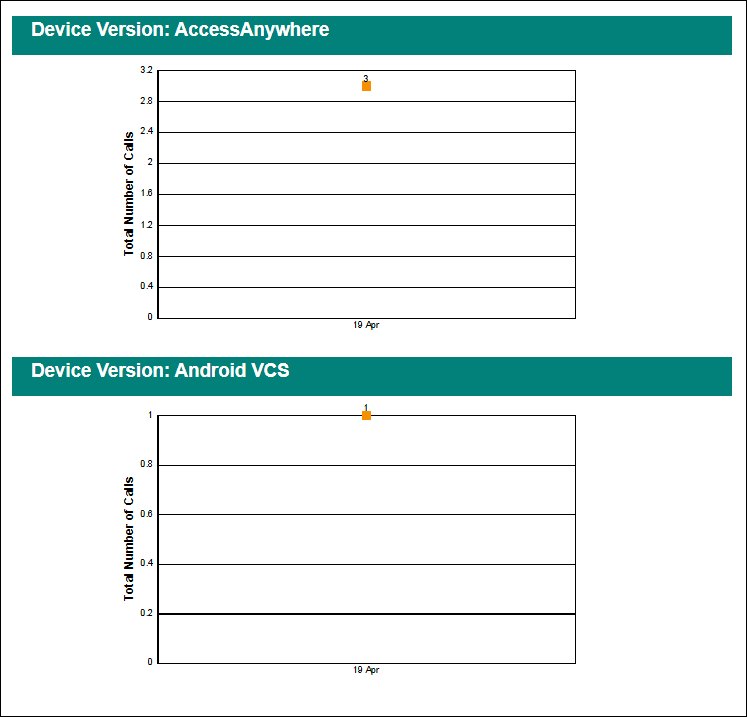

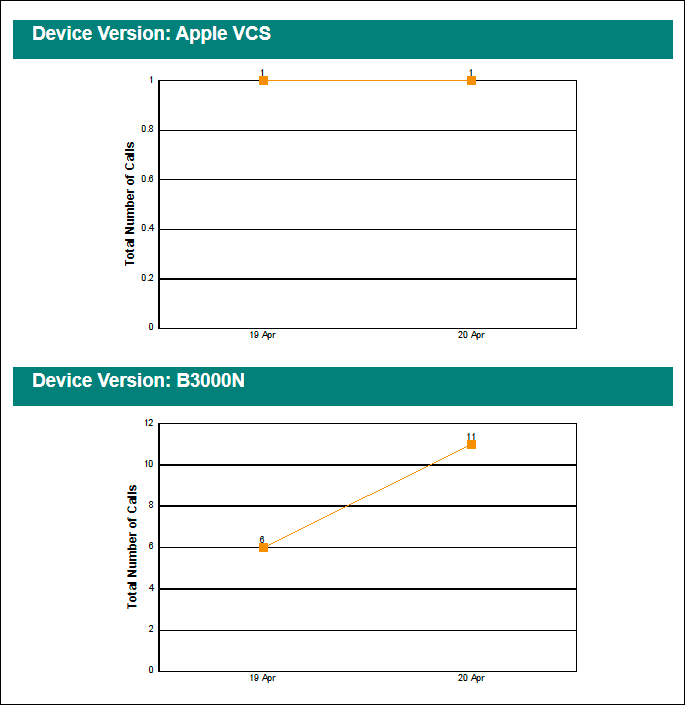

Following are the consecutive pages in a report that display the usage trend for every device used within the selected date range.

Note: The Y-axis displays a decimal value if the date range selected has lesser number of calls.
