Using the UI / Directory |
[Data Source: Voice Server, VCS] Provides inactive group entries for an enterprise or facility. Data includes totals by facility or unit, group, and the last used date. Administratively, system admins will review the dashboard to review if specific groups are no longer using the system.
The information displayed on the screen is determined based on the filters that you apply. The available filters are:
Filter Name | Filter Description |
---|---|
Date Range | The date range to be considered for arriving at the result. By default, the value is the current date; however, you can select from a list of options. For example, you can select the option "Last 7 days" or "Last 30 days." |
Facilities | Used to filter data based on group facilities (common facility name) specified while mapping Vocera Voice Server Group site. |
Units | Used to filter data based on group units (common unit name). Common unit names
are referenced from a crosswalk table cwunit that are mapped from
Vocera Voice Server
Group Department. Note: The displayed units drop-down filter may be constrained by the
Facilities filter.
Unknown Unit or Department display data for all groups that are not part of any department selected within the Facilities filter. |
For the selected date range, if there is no activity for the group, it is considered as inactive and is displayed in the results. The dashboard lists the group details based on the last used date by default. Click on a facility to display the details of inactive groups within the selected facility.
Use the Search field to search on a specific field value.

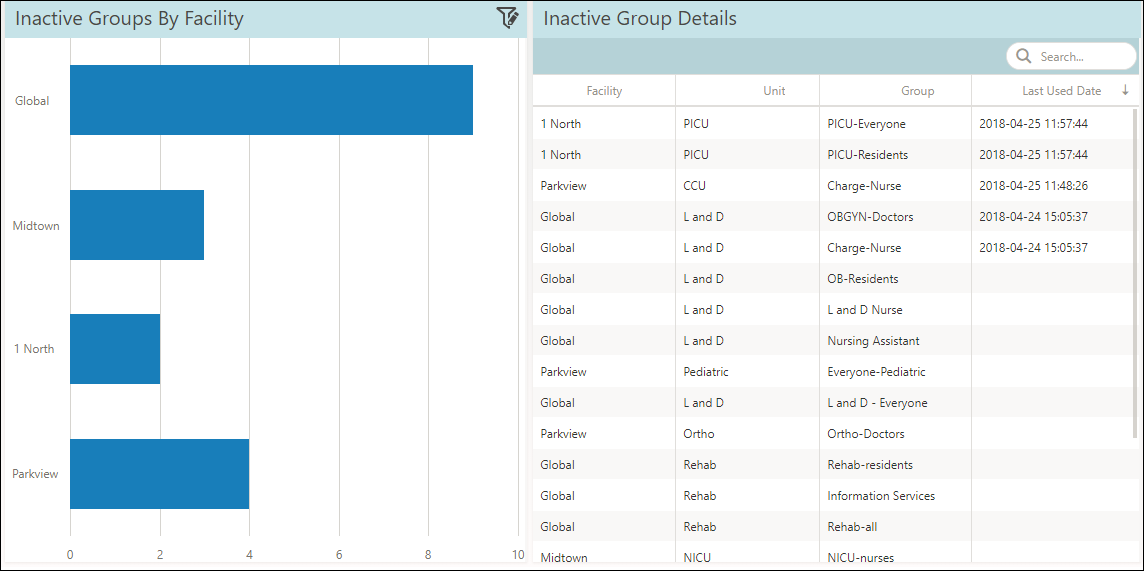

This widget displays the total number of unique inactive groups in each facility. Mouse over a displayed value on the widget to view the total unique inactive groups in a facility.
The Inactive Groups By Facility widget includes a contextual filter.
The contextual filters contain a source and a target widget. In this case, Inactive Groups By Facility is the source widget and Inactive Group Details is the target widget. Click a facility to display only the corresponding data in the Details widget. For example, click Global to display only the details of Global facility in the Details widget.
Facility | Unit | Widget displayed |
---|---|---|
All | All | Inactive Groups By Facility |
More than one | All | Inactive Groups By Facility |
One | All | Inactive Groups By Unit |
All | One | Inactive Groups By Unit |
All | More than one | Inactive Groups By Unit |
The following figure shows Inactive Groups By Unit.
Consider the scenario where Pediatric is a unit, NICU is a unit within Pediatric, and Respiratory is a group within NICU. In this case, Pediatric shows a count of 3 (Pediatric-Pediatric, Pediatric-NICU, and Pediatric-Respiratory) and NICU shows a count of 2 (NICU-NICU and NICU-Respiratory.)

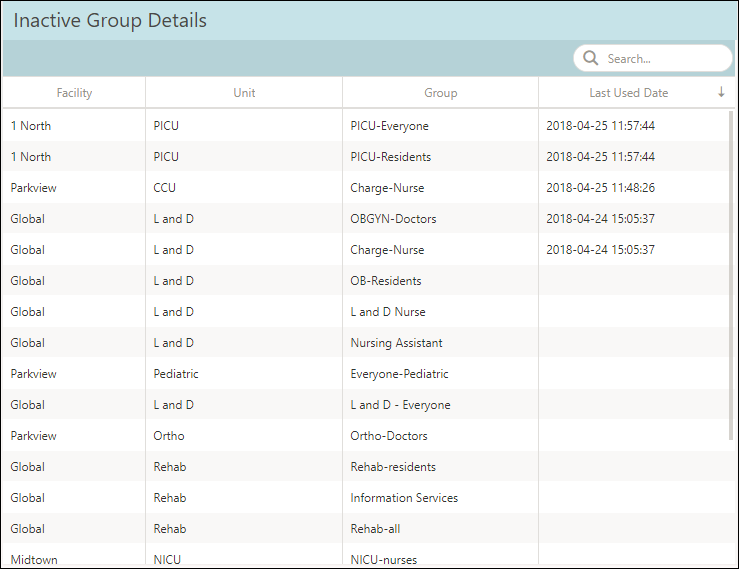

The widget displays all inactive groups along with facility and unit. It also displays the date when a group was last used.
