Accessing the SpectraLink Web Configuration Utility

Navigate to the device's Internet Protocol (IP) address in a web browser, in order to work with the SpectraLink Web Configuration Utility.

First locate the device's IP address, then access the SpectraLink Web Configuration Utility. See Exiting the Web Utility for instruction on closing the utility.
  1. On the SpectraLink phone, navigate the following path to locate the IP address of the device: Settings > Status > Platform > Phone > IP.
    The IP address of the device is displayed.
  2. Enter the device's IP address in a web browser to display the SpectraLink Web Configuration Utility.

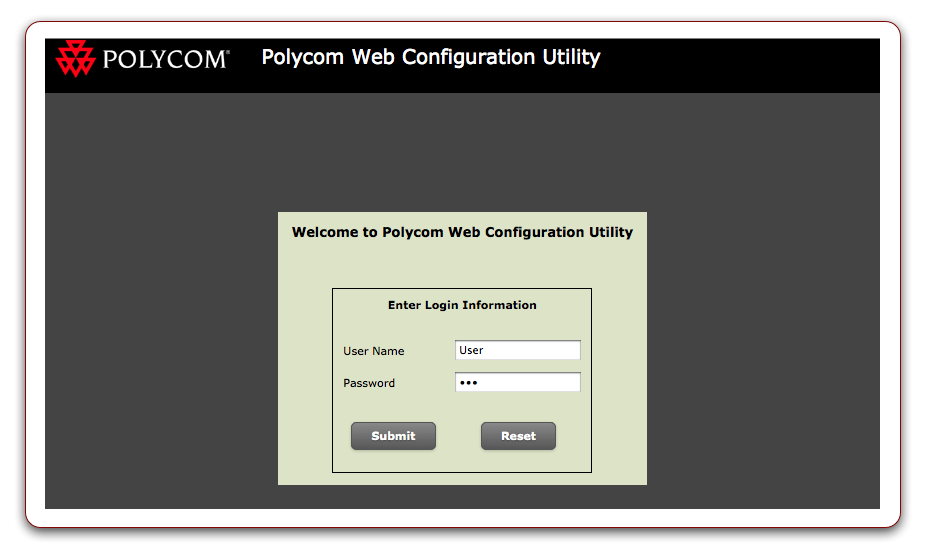

    1. Enter the User Name. This must match the Admin UserName entered in the adapter's Common Settings configuration. See Configuring a Vocera SpectraLink XML Adapter.
    2. Enter the Password. This must match the Admin Password entered in the adapter's Common Settings configuration. See Configuring a Vocera SpectraLink XML Adapter.
  3. Select Submit to log into the SpectraLink Web Configuration Utility.

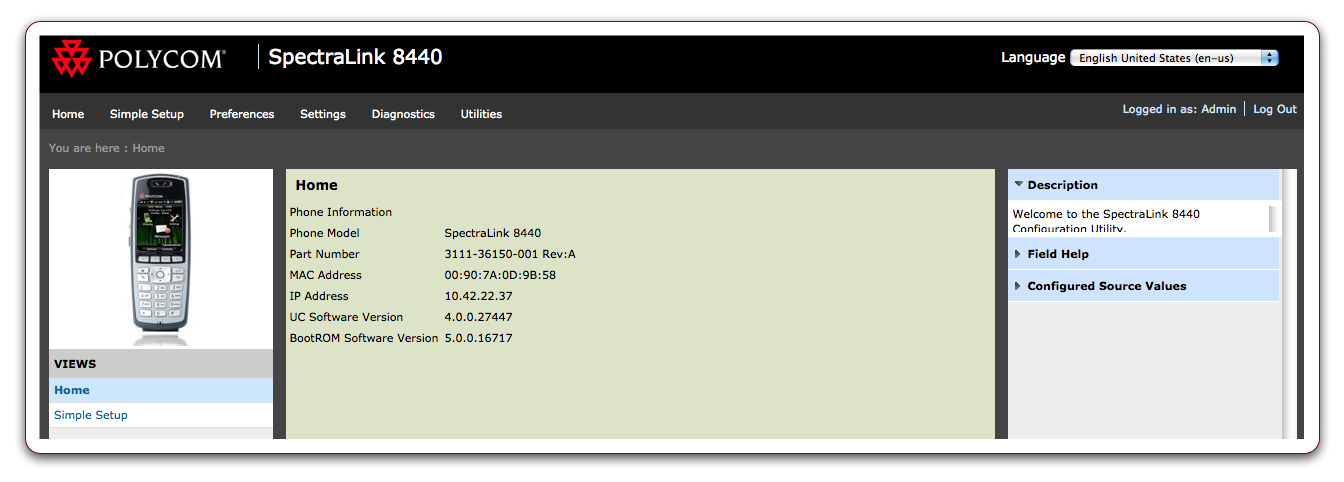

    The Utility dashboard displays.
